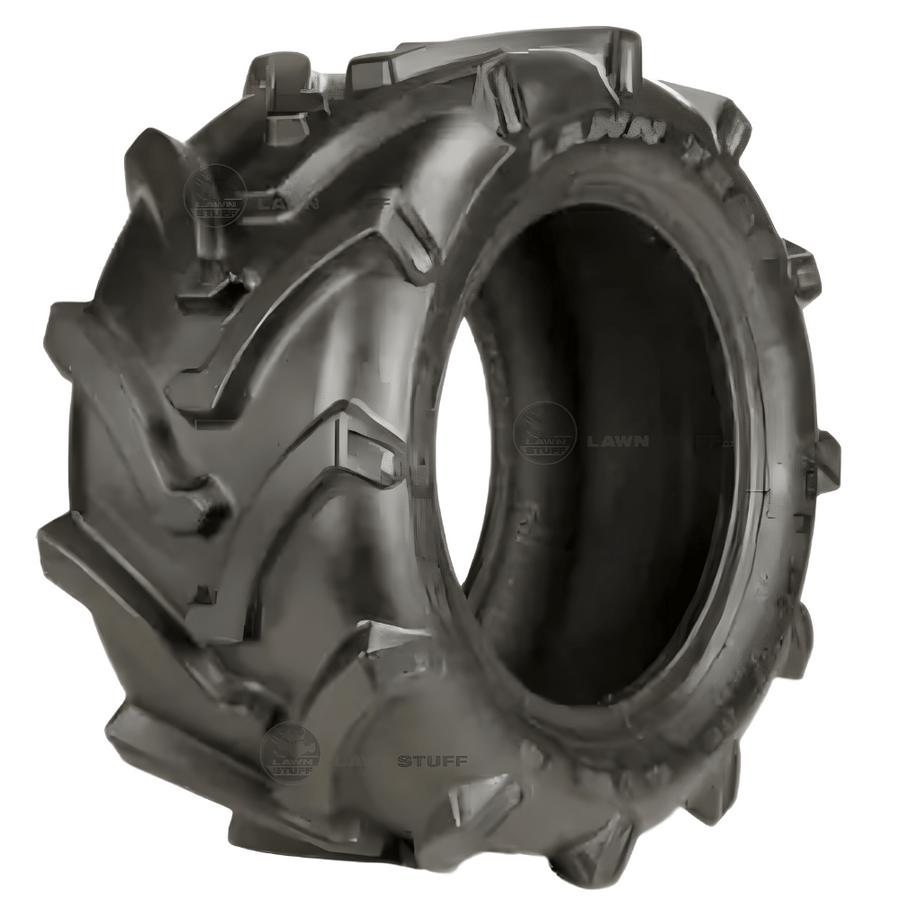

OTR LAWN TRAC R1 TIRES
Details:
Discover the rugged performance and reliability of OTR's LAWN TRAC and TRAC MASTER series tires, designed to handle demanding applications across a variety of Kubota machinery. These bias-ply tires deliver excellent traction, durability, and stability in agricultural and turf environments.
With sizes ranging from 16x7.50-8 to 26x12.00-12, this lineup offers options tailored to specific load and PSI requirements. The 16x7.50-8 tire supports up to 710 lbs at 24 PSI, ideal for compact setups, while the heavy-duty 26x12.00-12 can manage 2,835 lbs at 48 PSI. Section widths vary from 7.13 to 12.15 inches, accommodating different rim widths and fitments. Each model features bias construction with tubeless compatibility, a directional R-1 tread for enhanced grip, and is suited for both turf and field use. Select styles such as the TRAC MASTER or LAWN TRAC TL provide targeted performance based on the terrain.
These tires are engineered for Kubota machines and comparable equipment, offering exceptional performance across various applications. Whether you need enhanced flotation or increased load capacity, OTR tires deliver the strength and tread performance you need to get the job done efficiently.
Please note: Rim is not included with this product.
Specification:
| 16x7.50-8 | 18x8.50-8 | 24x12.00-12 | 26x12.00-12 | |
|---|---|---|---|---|
| Base Unit (aka UOM) | EA | EA | EA | EA |
| Brand | OTR | OTR | OTR | OTR |
| Construction | BIAS | BIAS | BIAS | BIAS |
| Country of Origin | CHINA, THAILAND | CHINA, THAILAND | CHINA, THAILAND | - |
| Diameter | 16 | 18 | 24 | 26 |
| Industry Code | R1 | R1 | R1 | R1 |
| Load Index | 69 | 74 | 99 | 117 |
| Load/Speed Index | 69A3 | 74A3 | 99A3 | 117A5 |
| Machine Fitment/Application | KUBOTA ABXR8783R ABXR8783L AGRR8672 BX1500 GR2000 BAR K1253-18411 K1253-18421 K2511-18412 K2511-18412-A K2511-18422 K2511-18422-A | KUBOTA ABXR8713L ABXR8713R K2561-18411-A K2561-18421-A | KUBOTA ABXR8784L ABXR8784R K2511-17412-A K2511-17422-A | - |
| Max Load Capacity (Lbs) | 710 | 825 | 1710 | 2835 |
| Max PSI | 24 | 22 | 20 | 48 |
| Mounted Diameter (Inch) | 16.42 | 18.11 | 24 | 25.6 |
| Pattern/Position | R-1 DIRECTIONAL | R-1 DIRECTIONAL | R1 | - |
| Ply/Load Index/Star Rating | 4 | 4 | 4 | 8 |
| Ratio | 7.50 | 8.50 | 12.00 | 12.00 |
| Rim Diameter | 8 | 8 | 12 | 12 |
| Rim Size | 8X5.375 | 8X7 | 12X10.5 | 12X8.5 |
| Rim Width | 5.375 | 7 | 10.5 | 8.5 |
| Section Width | 7.13 | 8.38 | 12.15 | 12.08 |
| Short Code | 16-7.50-8 B | 18-8.50-8 B | 24-12.00-12 B | 26-12.00-12 D |
| Size | 16-7.50-8 | 18-8.50-8 | 24-12.00-12 | 26-12.00-12 |
| Speed Rating/Speed (MPH) | A3/10 | A3/10 | A3/10 | A5/15 |
| Style | LAWN TRAC TL | LAWN TRAC TL | TRAC MASTER / HBR LAWN TRAC | LAWN TRAC |
| Tube Type / Tubeless | TUBELESS | TUBELESS | - | TUBELESS |
| Type | R1 | R1 | R1 | R1 |
| Weight (Lbs.) | 10.000000 | 13.000000 | 23.000000 | 35.000000 |
